Cube Aim SLX graphite´n´metal 2023
You know the saying, ‘power is nothing without control’? It’s the reason that Aim SL features 100mm of smooth, RockShox-flavoured bump-swallowing travel – with lockout. Combined with the strong Shimano hydraulic disc brakes, tapered head tube and grippy 2.25in tyres, it’s your guarantee of always being in full control, wherever your curiosity takes you. Wide-ranging Shimano 2×9 gears put the ideal ratio for any trail at your fingertips, and the frame’s internal cable routing even allows for a future dropper post upgrade.

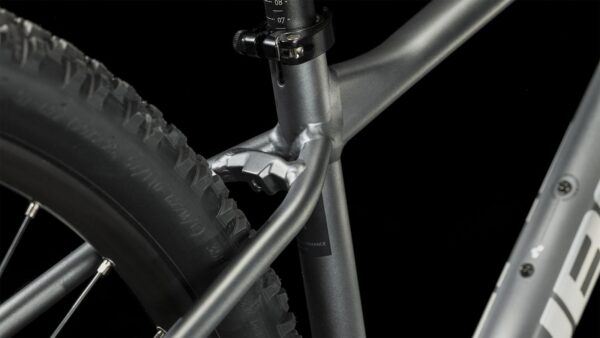

What’s holding you back?Aim’s sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there’ll be an Aim that fits perfectly.
FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
FORK: RockShox Judy Silver TK Coil, 100mm, Lockout
HEADSET: CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated
STEM: CUBE Performance Stem Pro, 31.8mm
HANDLEBAR: CUBE Rise Trail Bar, 680mm
GRIPS: ACID React
REAR DERAILLEUR: Shimano RD-M3100-SGS, 9-Speed
FRONT DERAILLEUR: Shimano FD-M2020, Top Swing, 31.8mm Clamp
SHIFTERS: Shimano SL-M2010-9R, Rapidfire-Plus
BRAKES: Clarks M2, Hydraulic Disc Brake, PM/PM (160/160)
CHAINWHEEL: Shimano FC-MT101, 36x22T
FREEWHEEL: Shimano CS-HG201, 11-36T
CHAIN: KMC X9
RIMS: CUBE ZX20, 32H, Disc
HUBS: Shimano HB-TX505, QR, Centerlock
TYRES: Schwalbe Smart Sam, Active, 2.25
PEDALS: CUBE Plastic MTB
SADDLE: Natural Fit Venec Lite
SEAT POST: CUBE Performance Post, 27.2mm Seatpost clamp: CUBE Varioclose, 31.8mm
WEIGHT: 13.8 kg
