Cube Aim EX grey´n´red 2023
When the off-road bug bites, you’ll want a bike that won’t let you down. That’s why, for Aim EX, we began with Shimano’s superbly reliable, wide-ranging Deore 1×10 gears. Paired with the bump-swallowing ability of Suntour’s 100mm XCM fork – with remote lockout – and tenaciously grippy 2.25in tyres, it’s your guarantee of always having the right gear for any eventuality at your fingertips. Strong Shimano hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake.

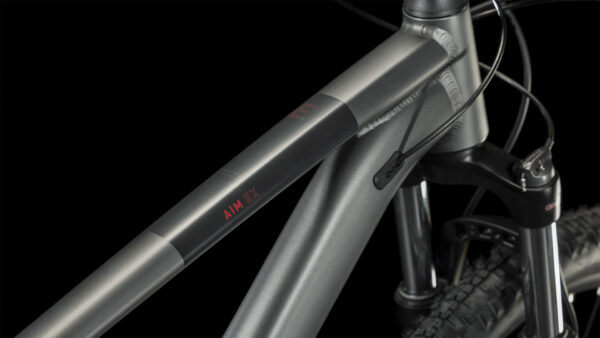

Where will it take you next? Aim’s sleek looks are thanks to its smooth-welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier.
Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range too, so however tall you are there’ll be an Aim that fits perfectly.
FRAME: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
FORK: SR Suntour XCM Disc, 100mm, Remote Lockout
HEADSET: CUBE FPH868, Top 1 1/8″, Bottom 1 1/2″, Semi-Integrated
STEM: CUBE Performance Stem Pro, 31.8mm
HANDLEBAR: CUBE Rise Trail Bar, 680mm
GRIPS: ACID React
REAR DERAILLEUR: Shimano Deore RD-M5120-SGS, 10-Speed
SHIFTERS: Shimano Deore SL-M4100, Rapidfire-Plus
BRAKES: Shimano BR-MT200/UR300, Hydraulic Disc Brake, PM/FM (160/160)
CHAINWHEEL: Shimano Deore FC-M4100, 36X26T
FREEWHEEL: Sunrace CSM52, 11-46T
CHAIN: KMC X10
RIMS: CUBE ZX20, 32H, Disc
HUBS: Shimano HB-TX505, QR, Centerlock
TYRES: Schwalbe Smart Sam, Active, 2.25
PEDALS: CUBE Plastic MTB
SADDLE: Natural Fit Venec Lite
SEAT POST: CUBE Performance Post, 27.2mm Seatpost clamp: CUBE Varioclose, 31.8mm
WEIGHT: 13.9 kg
